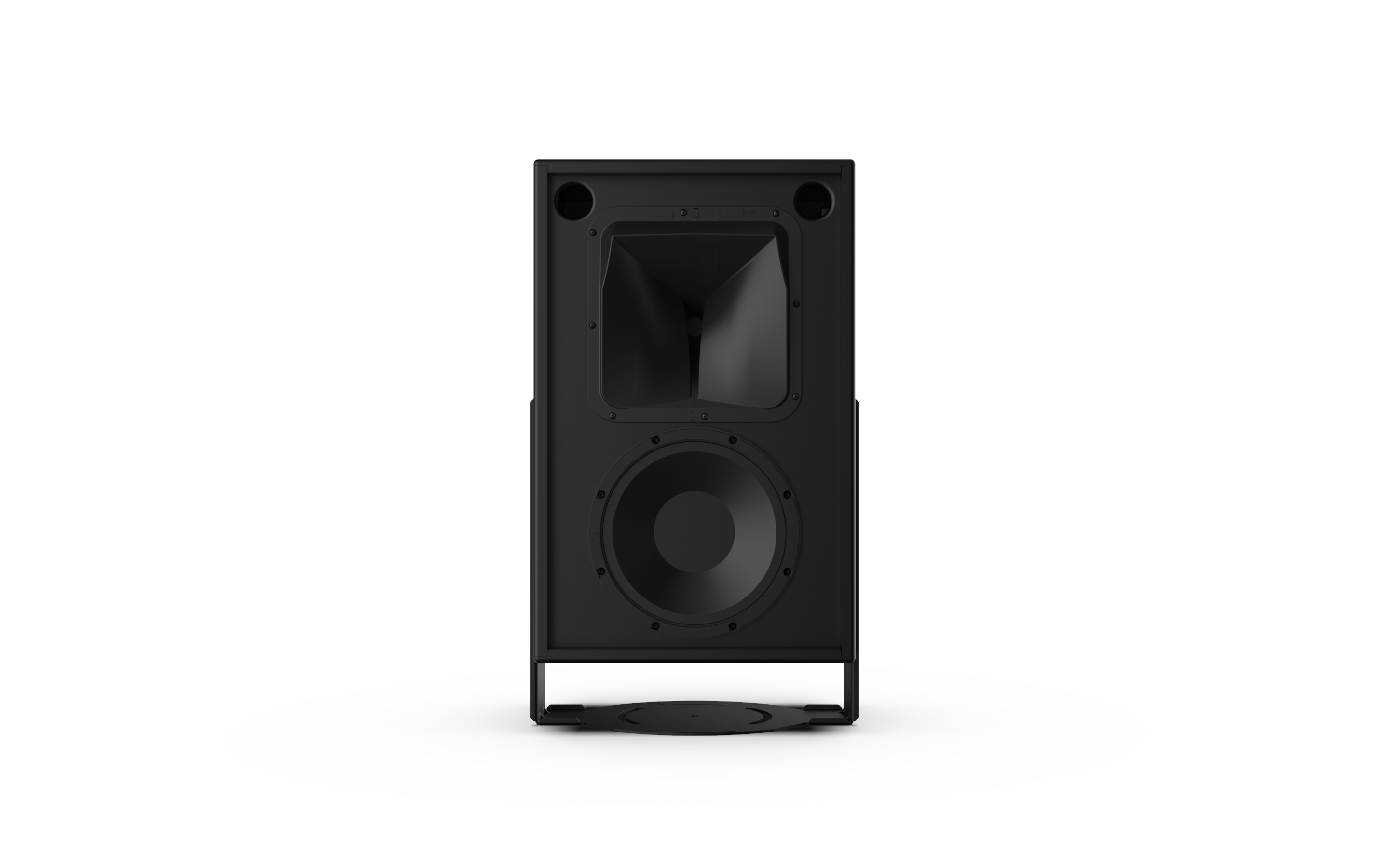

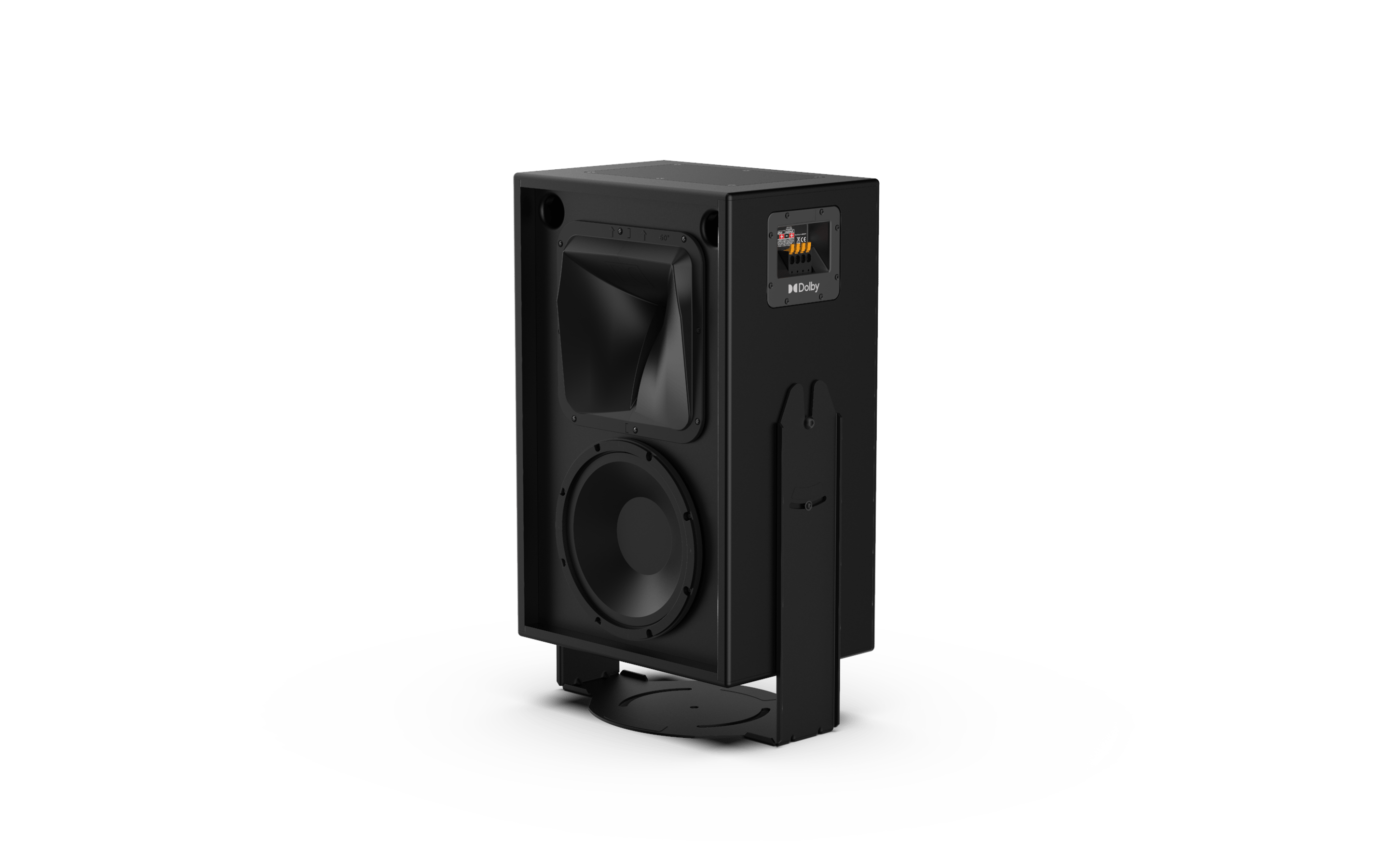

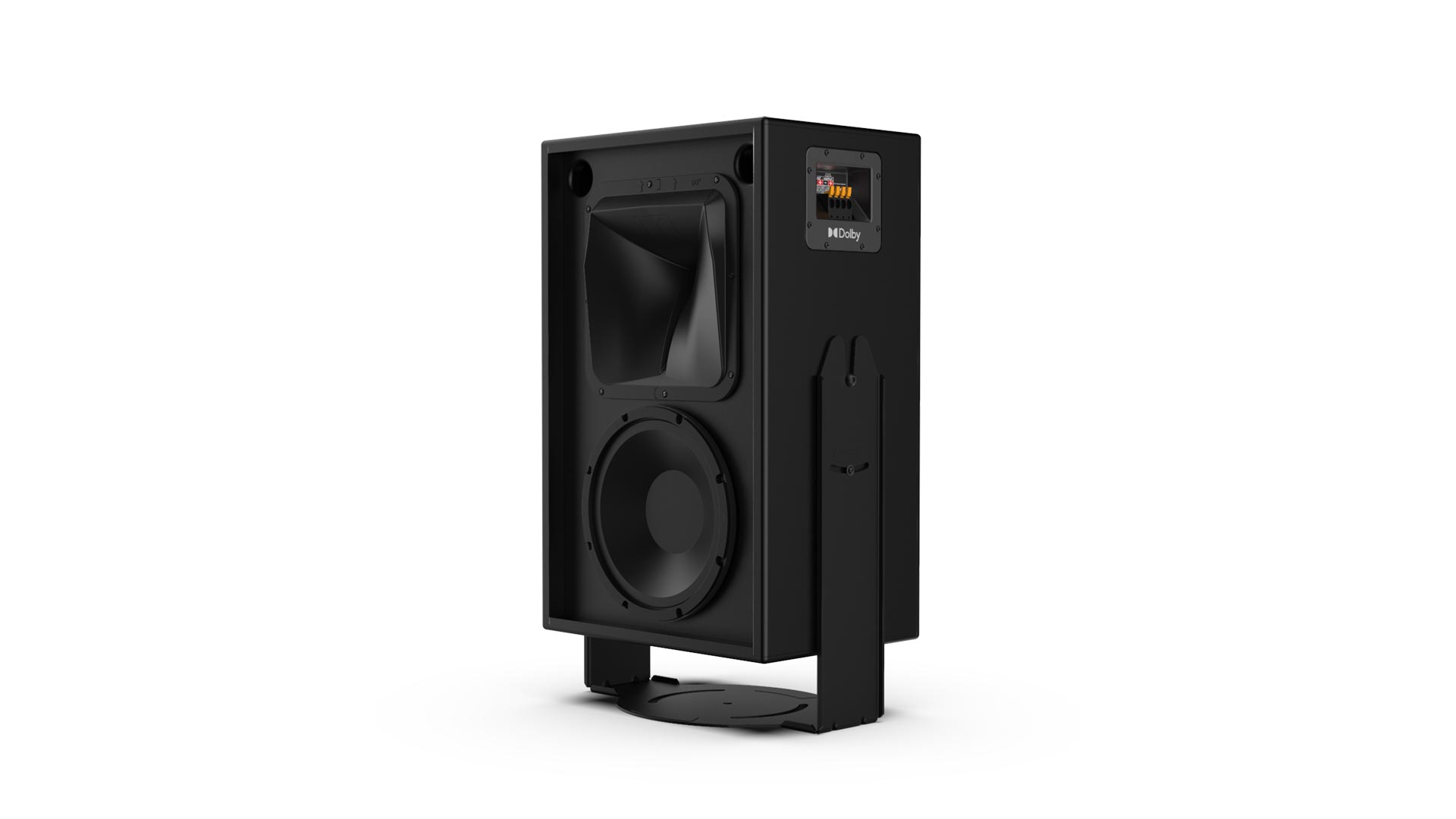

Dolby CS126MH Mid-High Screen Channel Speaker

Optimized asymmetrical coverage for small-to-medium-sized auditoriums

Operating as the mid/high component of our new System 126, the Dolby CS126MH is a passive, two-way mid/high speaker. The CS126MH features a 10” woofer for mid-frequencies and Dolby’s patented asymmetrical waveguide coupled to a 44.4 mm polyimide dome high-frequency driver which produces an innovative coverage pattern specifically designed for the seating areas of most commercial cinema auditoriums. The asymmetrical coverage pattern transitions from 70° at the top, to 130° at the bottom of the waveguide ensuring consistent volume by pushing louder audio to the rear seats while gradually widening and softening the coverage for the seats closer to the screen. The result is an articulate and uniform dialog and soundtrack experience for all the seats in the auditorium.

The CS126MH utilizes an advanced input plate that features a high-current, spring-loaded terminal block allowing quick, tool-free connection during installation, and when mounted atop the Dolby CS128LF low-frequency cabinet, completes the Dolby System 126. With the use of the optional PXO.126 full-range crossover, the System 126 is transformed from a bi-amplified system, to a passive, single-amp-channel system.

Features

• Patented asymmetrical waveguide design provides even coverage and volume levels for the entire auditorium

• Low-distortion, 44.4 mm polyimide dome high-frequency driver delivers smooth and faithful response up to 20kHz

• Advanced input plates featuring high-current, spring-loaded terminal block allows quick, tool-free connection during installation

• Quality-constructed wood enclosure employs natural convective cooling vents for the HF driver and crossover

• Custom, high-sensitivity, 10” mid-frequency driver incorporates motor and suspension technology that optimizes cooling

• When used in the System 126, the optional PXO.126 full-range crossover (sold separately) transforms the system from a bi-amp system, to a passive, single-amp-channel system.

• Shallow, 10.9” (27.7 cm) depth and laterally mounted input plate enable both easy installation and service access in challenging spaces

• Mounting yoke with horizontal and vertical alignment decal (included)
