Dolby CS128MH Mid-/High-Screen Channel Speaker

Superior coverage. Enhanced detail.

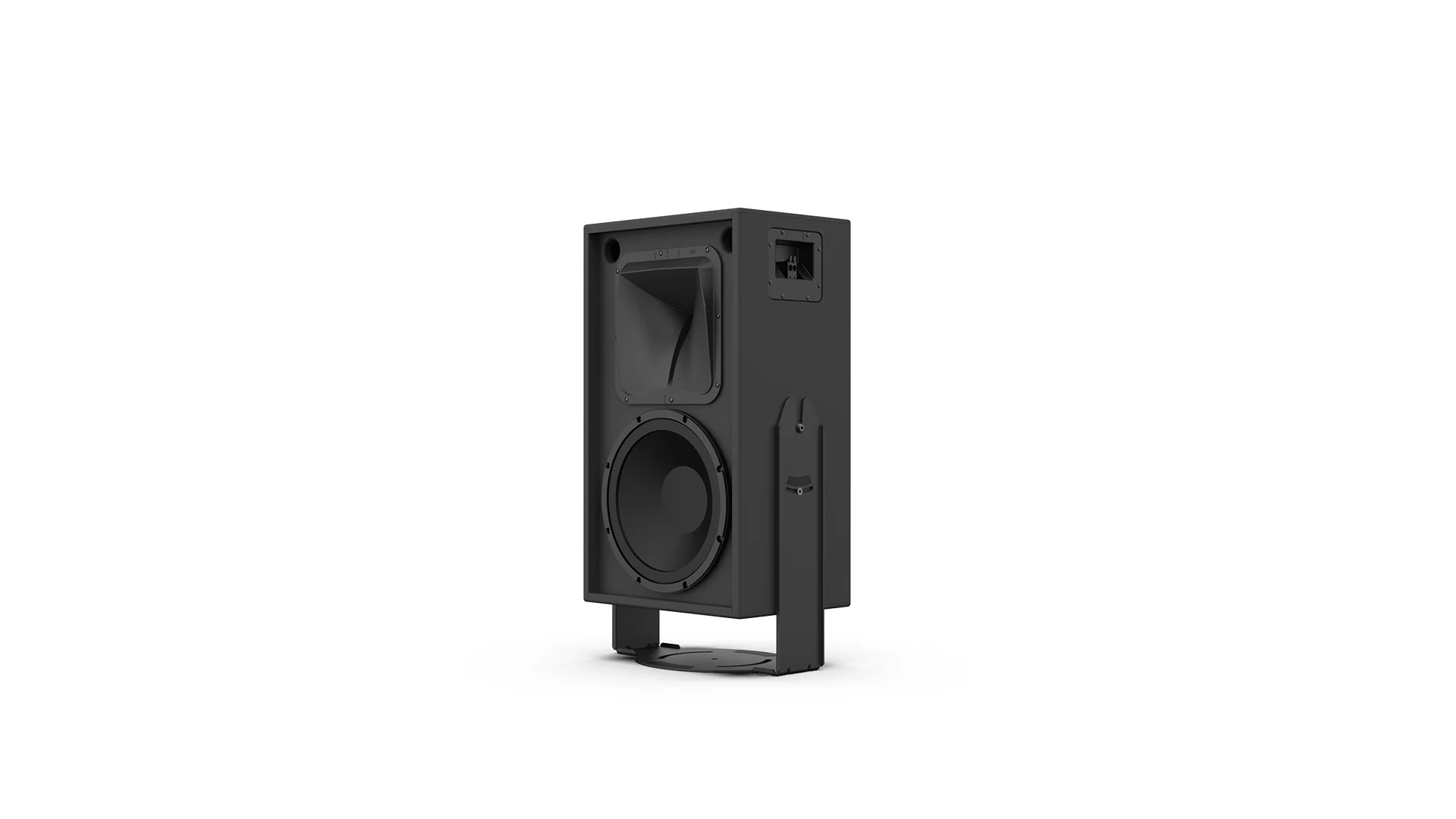

A primary component of our new System 128, the Dolby® CS128MH screen speaker, is one of our newest innovations to feature a patented asymmetrical waveguide coupled to a 75 mm titanium dome high-frequency driver, which produces a unique coverage pattern specifically designed for the seating areas of commercial cinema auditoriums. The asymmetrical coverage pattern transitions from 60° at the top, to 120° at the bottom of the waveguide ensuring optimized volume by pushing louder audio to the rear seats while gradually widening and softening the coverage for the closer seats, creating more articulate and uniform dialog and soundtrack delivery than experienced with other systems.

The CS128MH utilizes an advanced input plate that features a high-current, spring-loaded terminal block allowing quick, tool-free connection during installation. When combined with the new Dolby CS128LF low-frequency cabinet using the provided yoke, the CS128MH completes the Dolby System 128, providing elevated large-format auditorium performance and streamlined integration.

Features

• Patented advanced asymmetrical waveguide design provides even coverage and volume shading for the entire auditorium

• Low-distortion, 75 mm titanium dome high-frequency driver delivers smooth and faithful response up to 20 kHz

• Custom, high-sensitivity, 12” mid-frequency driver incorporates motor and suspension technology that optimizes cooling, as well as an aluminum demodulation ring for decreased distortion

• Advanced input plates featuring high-current, spring-loaded terminal block allows quick, tool-free connection during installation

• Quality constructed wood enclosure employs natural convective cooling vents for the HF driver and crossover

• Passive crossover is installed in cabinet allowing a single amplifier channel to drive the CS128MH (will require a minimum of two amplifier channels when coupled with the CS128LF to form a System 128)

• Shallow, 10.87” (27.63 cm) depth and laterally mounted input plate enable both easy installation and service access in challenging spaces

• Mounting yoke with horizontal alignment decal included

• Optional BKT.FLR floor-bracket kit (sold separately) allows for mechanical connection of the speaker stack to the auditorium mounting surface
